Helical Pier Installation Truckee Ca, 96160
Helical Pier installation one of the basements at the Ritz Carlton project

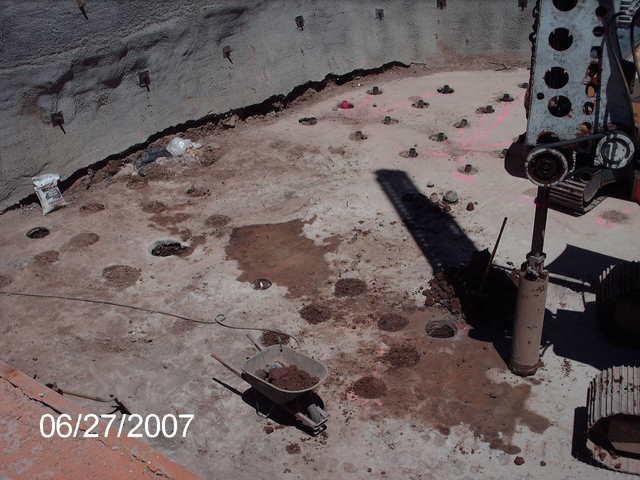

Watson 1000 Drill Rig Truckee Ca, 96160
This is a view of a foundation drill predrilling holes through a rat slab that had been installed in the basement for erosion control

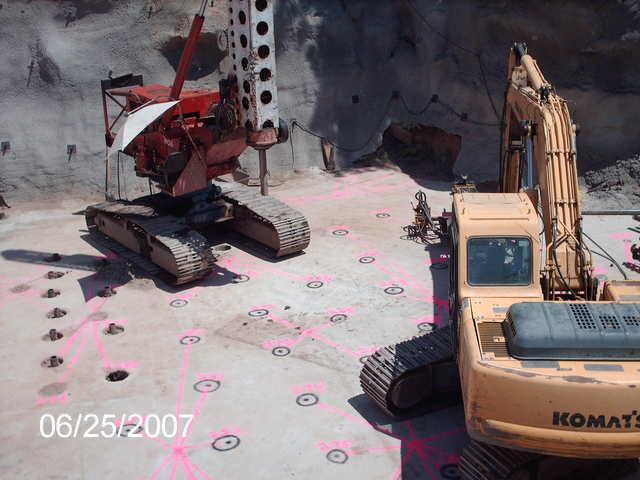

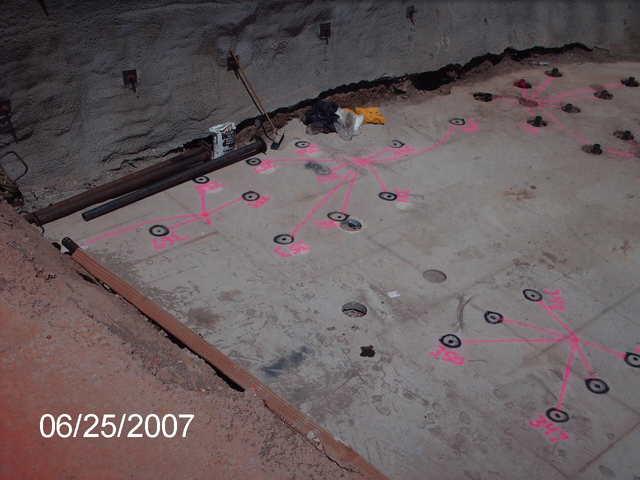

Core Drilling Holes for helical Piers Truckee Ca, 96160
After core drilling holes in the rat slab a Komatsu 200 excavator was used as the carrier for the helical pier drive motor
Basement Support Truckee Ca, 96160
Helical piers needed to be installed on a grid to support the loads of the building

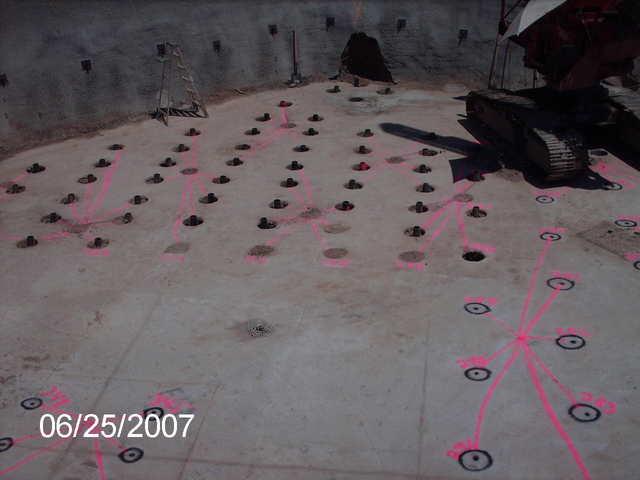

Helical Piers Truckee Ca 96160
Helical piers installed in basement at Ritz Carlton project Truckee, Ca. The sides of the basement were retained with soil nails and shotcrete

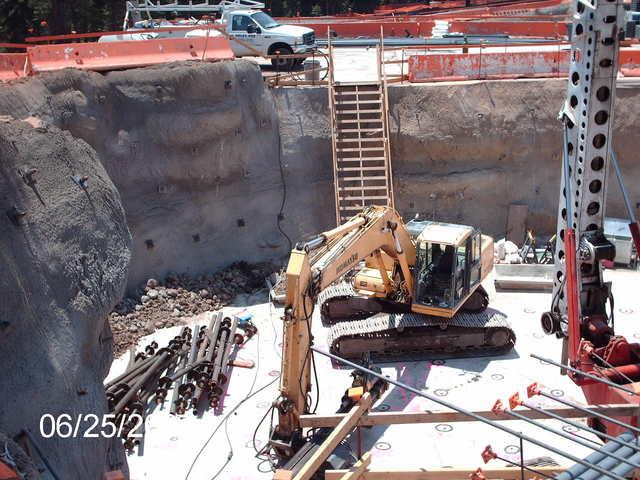

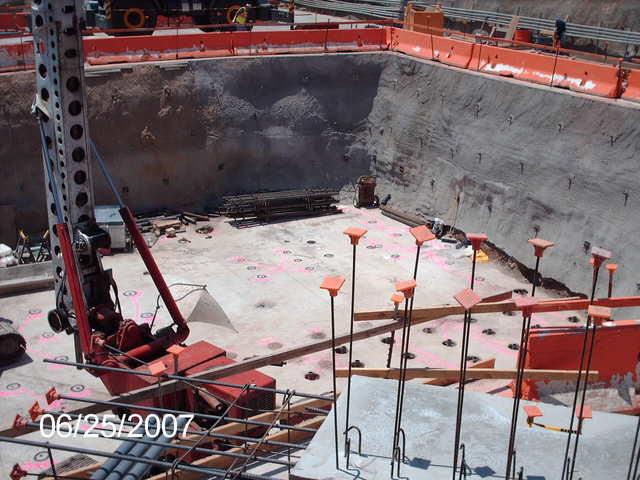

Ritz Carlton Basement Truckee, Ca 96160
This picture shows the basement and the temporary soil nail and shotcrete wall used to retain the excavation during construction

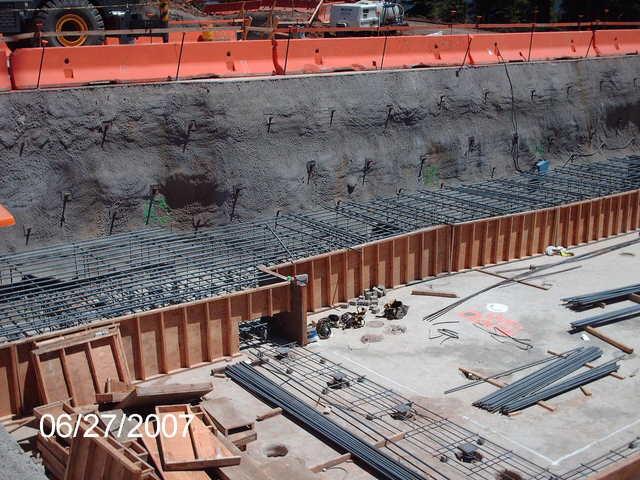

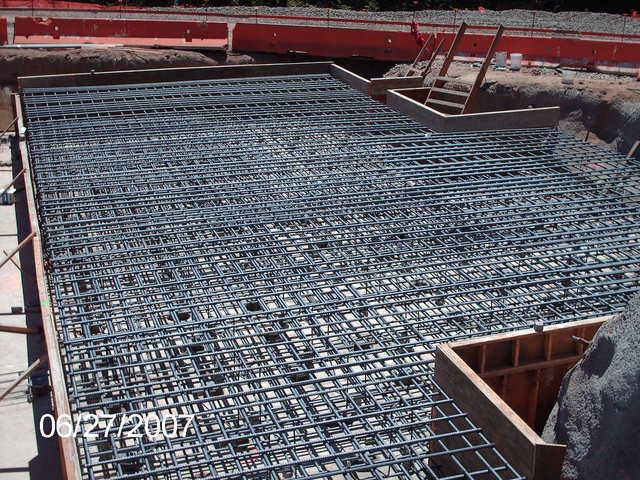

Helical Piers in Spread footings Truckee, Ca 96160

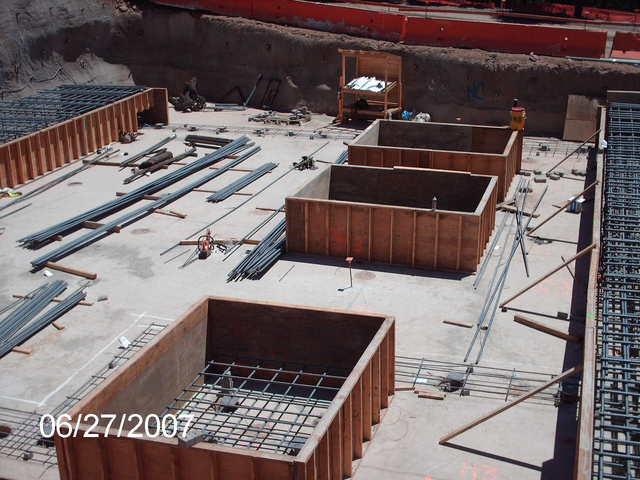

Helical Piers Truckee, Ca 96160
Helical piers are shown in the middle of the reinforcing mats

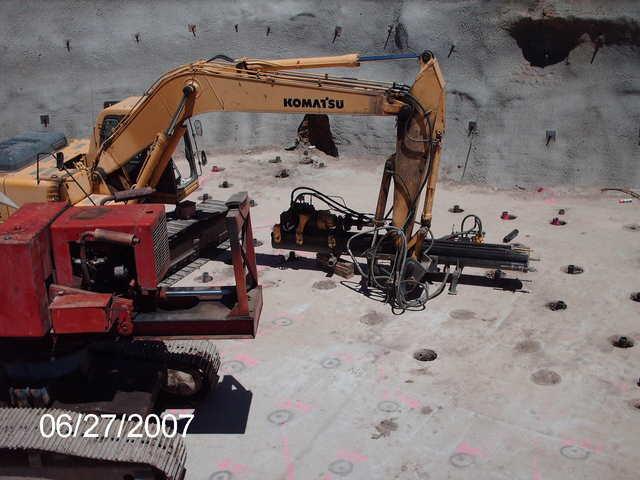

Helical Pier Drive on Komatsu Carrier Truckee, Ca 96160
Picture of 25,000 Lb-Ft torque motor on Komatsu Excavator
Installing Helical Piers Truckee, Ca 96160
Installation of one 4.5 inch diameter round shaft helical pier

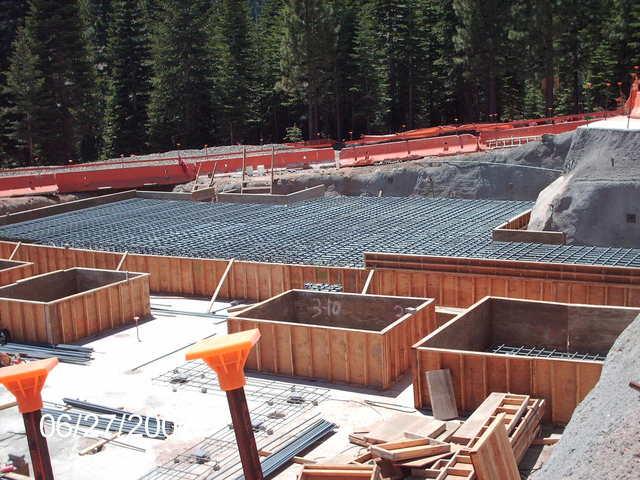

View of basement from upper level Truckee, Ca 96160
Looking down on basement from upper level
